Mitsubishi Evo 7 8 9 K20 K24 Series Mount Kit K Swap

Please watch the following YouTube Video for a better understanding of the Complete Conversion kit!

https://www.youtube.com/watch?v=TECwqtHc4rY&t=195s

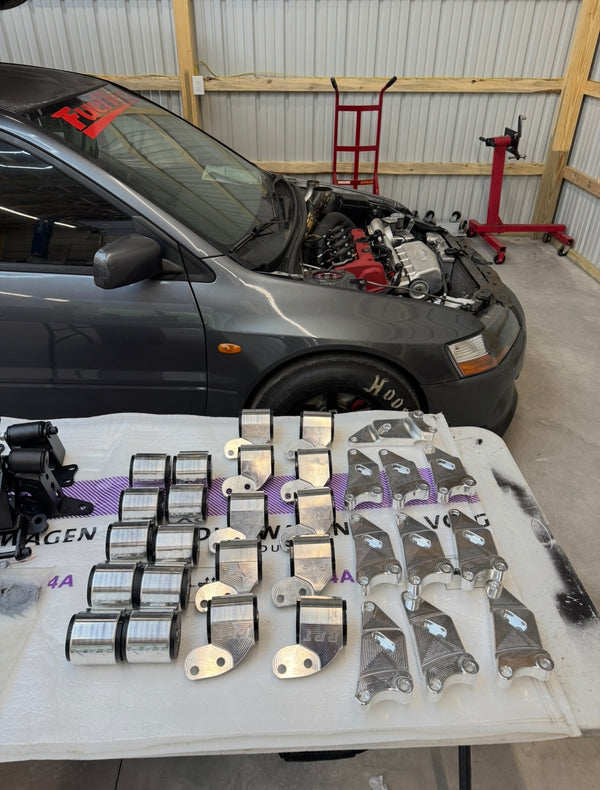

Introducing the latest RPT Creations Conversion kit! After many years of R&D we have finally designed a bolt in full kit to K swap your Evo! This kit allows you to install a K20 or K24 into your 2001-2006 Mitsubishi Evolution (CT9A). The mounts are made out of T6061 Billet aluminum and designed to perfection! Included in this kit is the following:

-Engine Mount

-Transmission Mount (2 Piece design but will come assembled)

-AWD T-Bracket

-Hardware

Note: Rear Engine Mount will be sent and included with the front subframe purchase. Optional North/South bar can be purchased along with the Font/Rear Tubular Subframes. Once you place your order for the mount kit you will be provided with contact information to place your order. Typical lead time for subframes is 2-3 weeks or sooner if you choose non powder coated option.

Cost:

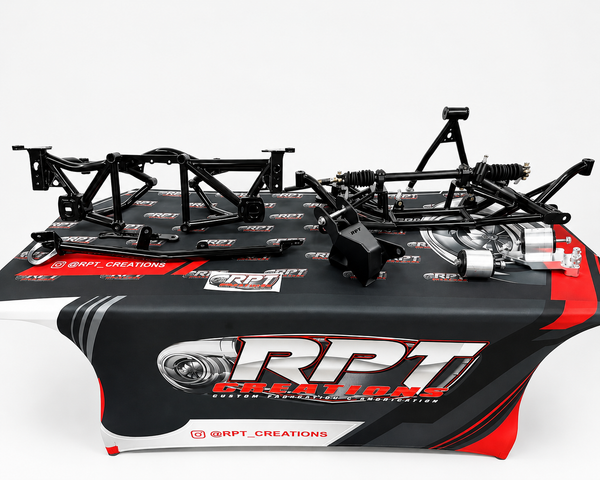

Front Chromoly Tubular Subframe: $2650 includes Billet Strange manual Rack, Custom Steering shaft (you must send in your OEM shaft), Adjustable inner tie rods, and Rear Engine Mount (deduct $100 for No powder coat option)

Rear Chromoly Tubular Subframe: $1950 (deduct $100 for No powder coat option)

Optional North/South Bar (Mid plate): $350

Hardware needed for 2002-2006 Jaguar X-Type 2.5L Rear Differential:

(2) 80mm M12x1.75

(6) 35mm 8x1.25

(4) 25mm 8x1.25

Rear Sway Bar- (4) 25mm 3/8-24

Axles: Direct drop in no modifications needed

Front axles will have two options available:

Front Budget Axles $1200

Front Series X4 axles- $1499

Rear Series X4 axles- $1999

Axles can be purchased directly through Driveshaft Shop. Email axles@driveshaftshop.com and include your RPT Order Number.

**This kit is intended to use the Honda CRV or Element AWD Transmission** You can use FWD transmission but must use a FWD T Bracket from K swap Civic.
