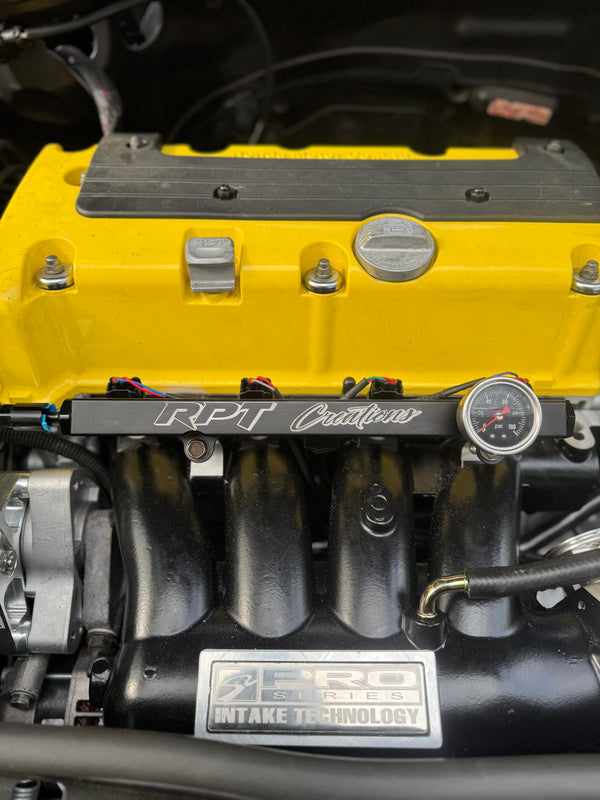

Complete your K swap Mini Kit with a bolt on Fuel Rail. This will bolt up to all K series intake manifolds. For R50/R52/R53, the factory fuel line will reach and connect with no modifications needed. For the R56/R57/R58/R59, be sure to add the complete kit with fuel line/fittings for a plug and play setup.
(This uses 8ORB Inlet/Outlet fittings)
For R50/R52/R53 Includes: Fuel rail, (2)8ORB plugs, Quick Disconnect fitting, (1) 1/8NPT plug, & Liquid filled 100Psi Gauge.
For R56/R57/R58/R59 Includes: Fuel rail, (2)8ORB plugs, Quick Disconnect fitting, (1) 1/8NPT plug, Liquid filled 100Psi Gauge, & 6AN Fuel line with Quick disconnect fittings. (This Fuel line kit will connect from the lower passenger side factory fuel line and connect to the passenger side of the Fuel rail. The bigger evaporator line next to it will remain open to atmosphere, nothing is required there for the swap.)
Note: These kits are intended for a N/A setup to use a return-less setup. For turbo applications I highly recommend running an aftermarket adjustable fuel pressure regulator with a return line back into the tank. (These fuel rails can still be used for turbo applications by adding the proper fitting for return line)
Disclaimer- For Off Road Use Only. By purchasing any aftermarket performance product, the customer takes full responsibility for any use, and/or misuse of the product and agrees that Rpt Creations Inc. holds no responsibility for any consequences, legal, or other, of such use and/or misuse.
