This RPT/CTT switch panel was designed to be used on those applications where a factory ignition no longer exists or applications where the chassis/dash harness was removed for a race application.

This unit is Plug & Play to the RPT/CTT Fueltech 550 Complete Harness to power up the ecu and starter trigger. The additional switches have leads that go into a separate AUX connector for add ons you may have in the future.

Install:

The 6-pin Female end connector will plug directly into the 6 pin Male connector on the Fueltech harness located by the fuse box.

The red wire will connect directly to your Red terminal block for constant power that was included with your engine harness.

The left over 6 pin AUX connector will be your trigger leads from the extra switches on the panel if you wish to “add on”.

Note: This switch panel is intended for the RPT/CTT Fueltech harness ONLY. Will not be compatible with anything else on the market as it is specifically pinned for our harness.

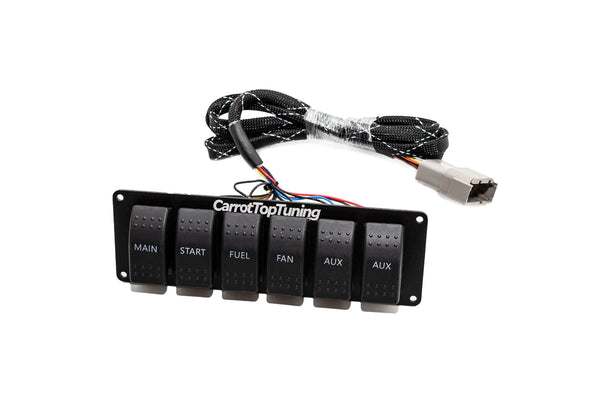

RPT/CTT Fueltech FT550 P&P Switch Panel
